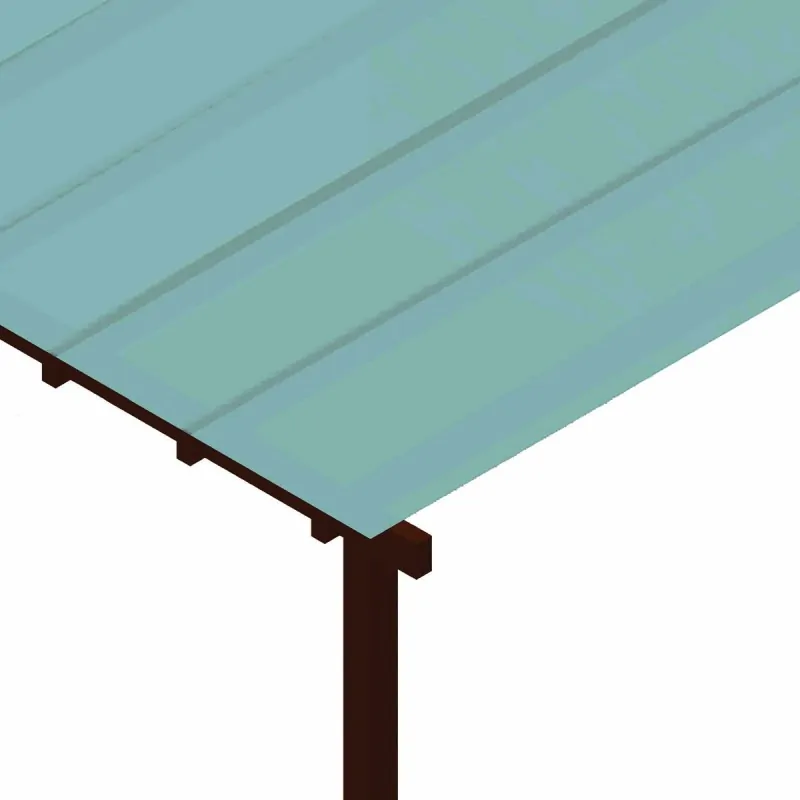

Pergola with Polycarbonate Sheet

PERGOLAS CHARACTERISTICS 

The timber (thickness in the beams and columns) that is used for the pergolas, is analyzed in the following specifications. 

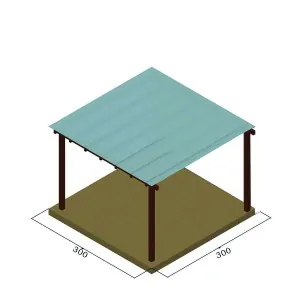

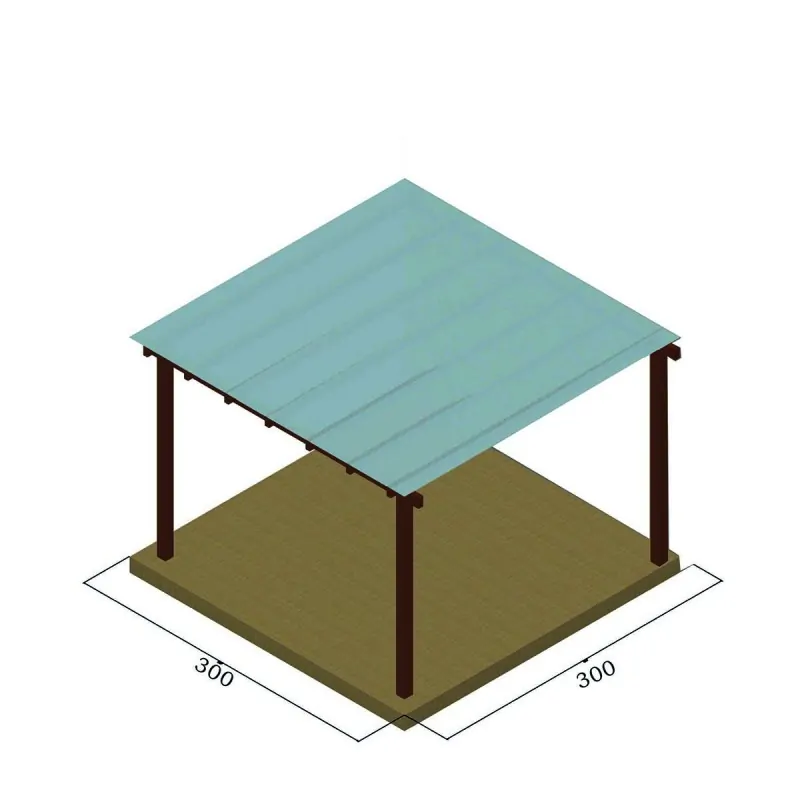

PERGOLA 300x300cm. Support columns 10x10cm. Central beams 6x12cm. Beams (parallel beams) 4,5x12cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 300x400cm. Support columns 12x12cm. Central beams 6X12cm. Beams (parallel beams) 4,5x12cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 400x400cm. Support columns 12x12cm., Central beams 6x14cm. Beams (parallel beams) 6x14cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 300x500cm. Support columns 12x12cm. Central beams 8x16cm. Beams (parallel beams) 4,5x12cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 400x500cm. Support columns 12x12cm. Central beams 8x16cm. Beams (parallel beams) 6x12cm. Supports (only in autonomous pergola) 4,5x9,5cm 

PERGOLA 400x600cm. Support columns 12X12cm. Central beams 8x16cm. Beams (parallel beams) 6x12cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

On its surface are placed various types of shading such as blinds, lattice, trellises, awning, polycarbonate, camouflage net, board or double board, reeds. We calculate for you the required pieces for the material you are interested in.

Included in the price: 

• The cost of timber materials for the assembly of the illustrated pergola. 
• Metal components ground Bases ‘Π’, 
• Torx screws, bolts, dowels (depending on the cross section of the column). 
• For the pergola that is supported on a wall, the joist hangers.
• Transparent polycarbonate sheet 10mm. thick as well as the necessary meterials for installation (polycarbonate connector, Profile "P"), silicone screws.  

The price does not include: 

• Painting of the timber (if you desire the pergola painted, please contact us first). 
• Assembly plan. 
• No special cuts, modifications, or personalized mods are included (pre-drilling, standardization, trim, timber clasp, timber routing, timber angles, etc.). 
• The assembly of pergola in customer’s place. 

WHY TO CHOOSE THE SHOWOOD PERGOLA 

·         The timber used for the construction of the wooden pergola is PRESSURE TREATED planed pine  (pressure treated in a vacuum under pressure), of Finnish origin. 

·         The timber has all the necessary certificates (ecological treatment, production, origin) as it is imported from the largest and most modern European factories. 

·         The metal elements (bases) are hot-dip galvanized, the screws (bolts, dowels, washers) are of Italian origin and excellent quality. 

*The above dimensions are indicative. 

At SHOWOOD you will find all sections of pressure treated timber, metal parts and shading materials to create your own unique pergola.
