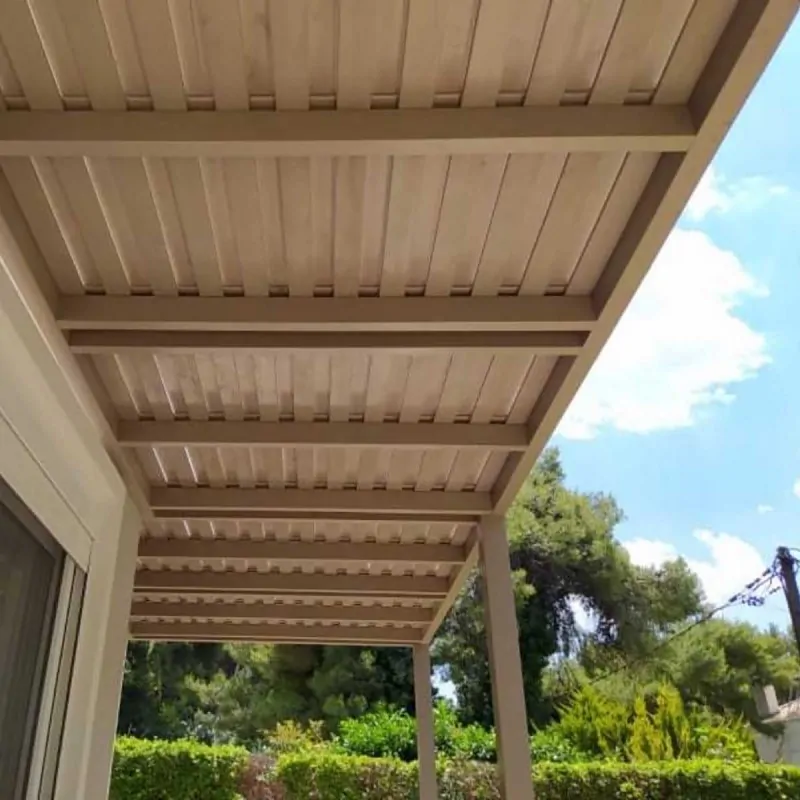

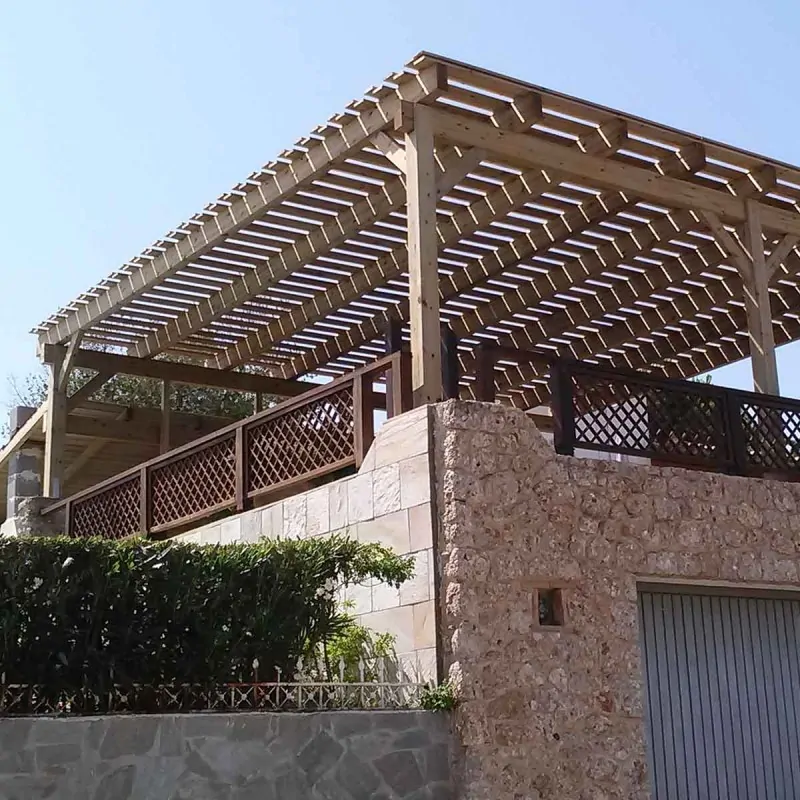

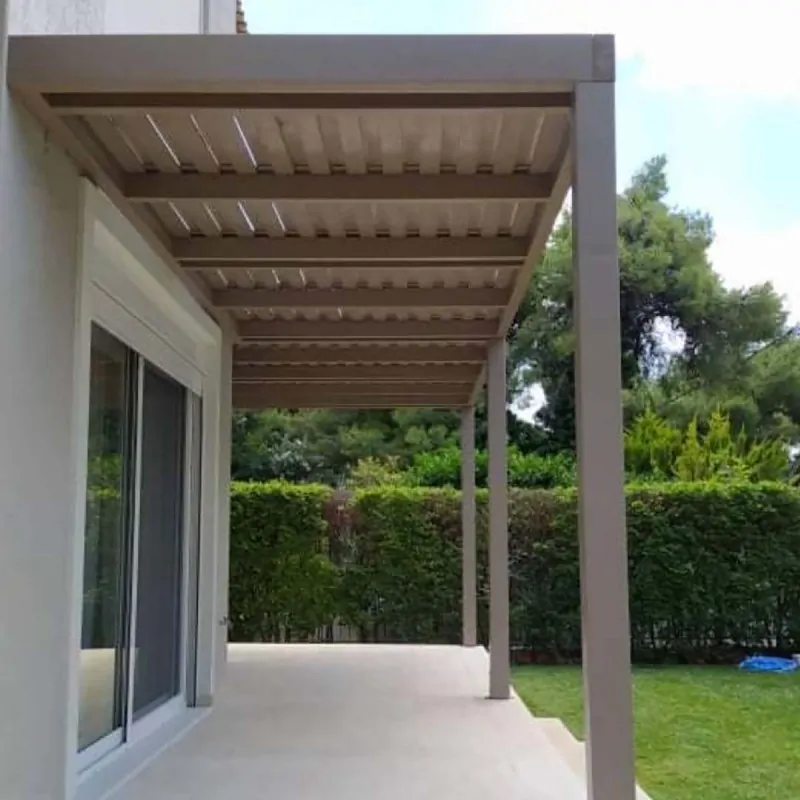

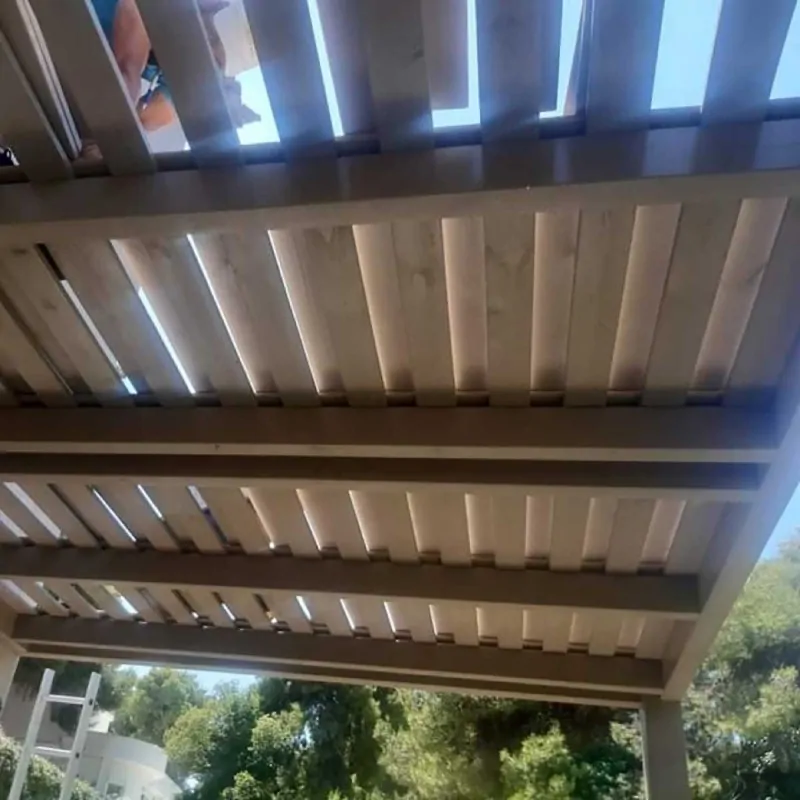

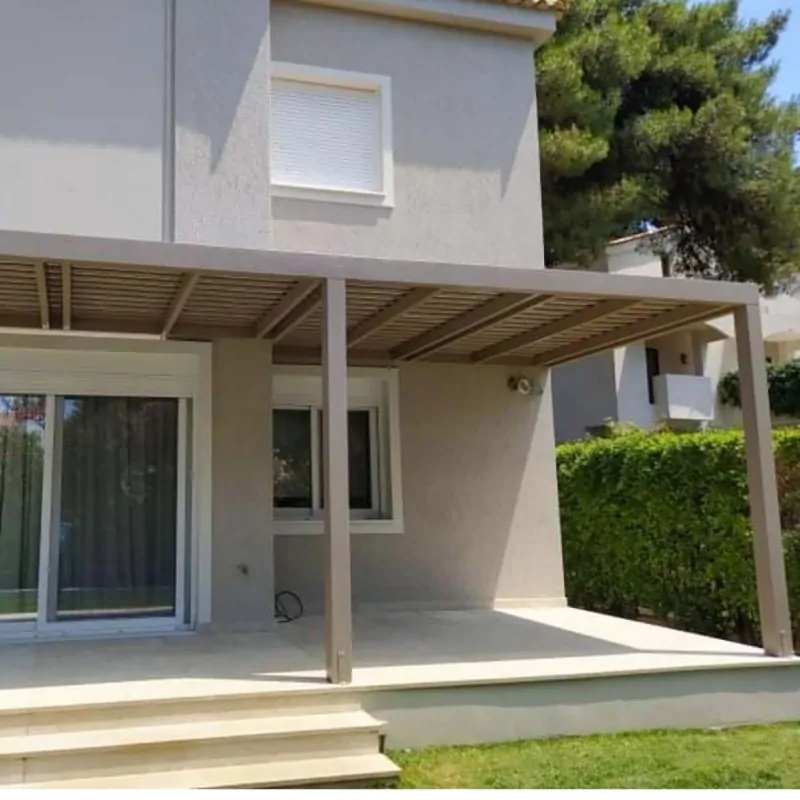

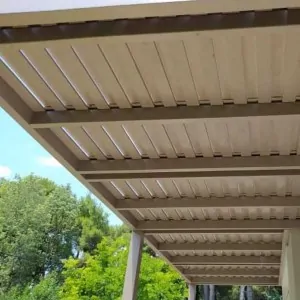

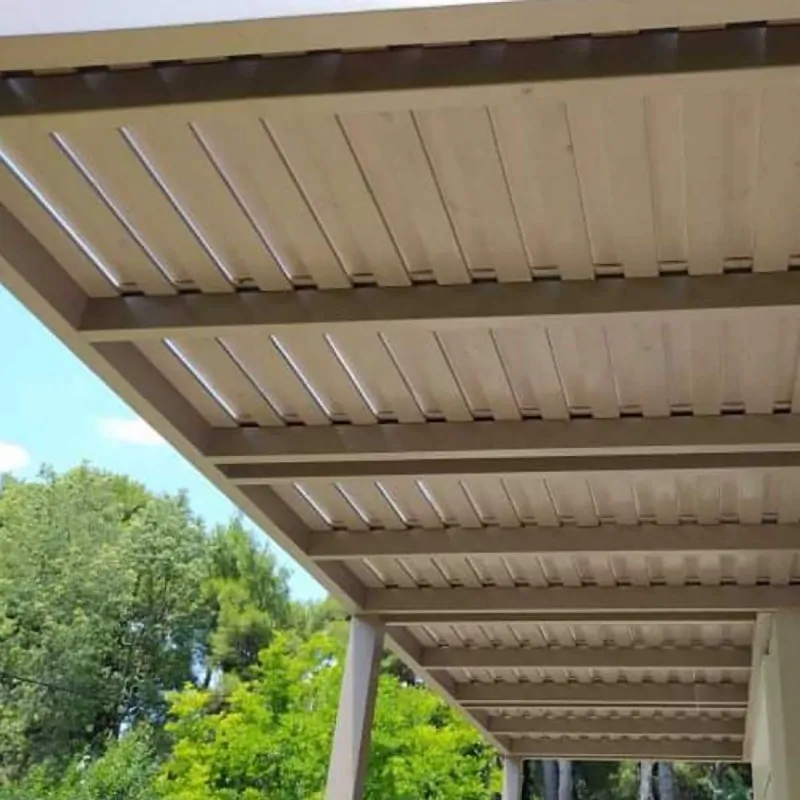

Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola
Wall double board wooden pergola

Wall double board wooden pergola

10-113003
€932.15
Available
pergola made of pressure treated timber
The wanted quantity is not available.

PERGOLAS CHARACTERISTICS

The timber (thickness in the beams and columns) that is used for the pergolas, is analyzed in the following specifications.

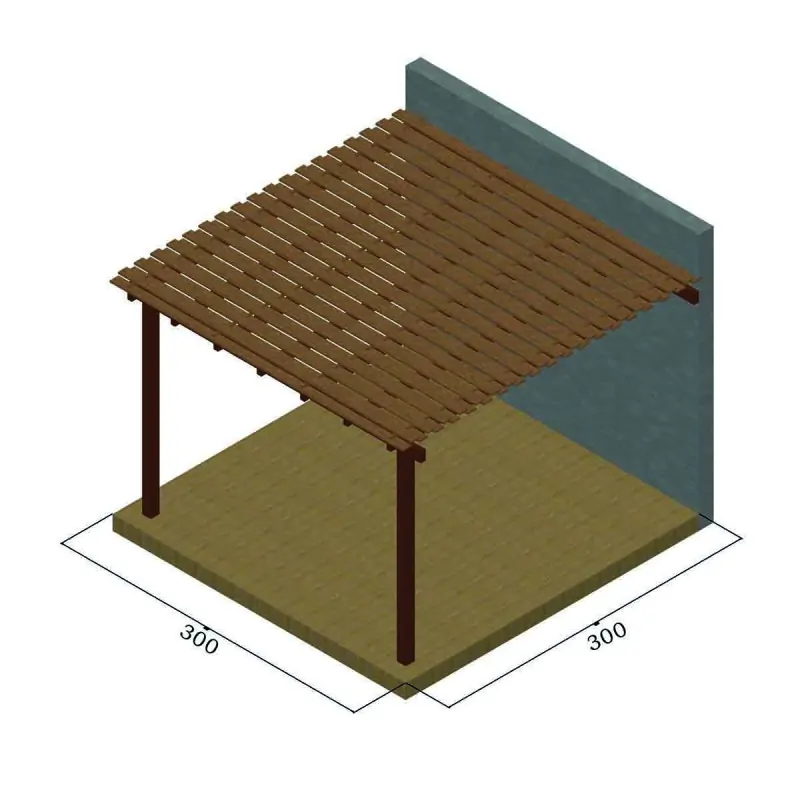

PERGOLA 300x300cm. Support columns 10x10cm. Central beams 6x12cm. Beams (parallel beams) 4,5x12cm. Supports (only in autonomous pergola) 4,5x9,5cm.

PERGOLA 300x400cm. Support columns 12x12cm. Central beams 6X12cm. Beams (parallel beams) 4,5x12cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 400x400cm. Support columns 12x12cm., Central beams 6x14cm. Beams (parallel beams) 6x14cm.Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 300x500cm. Support columns 12x12cm. Central beams 8x16cm. Beams (parallel beams) 4,5x12cm. Supports (only in autonomous pergola) 4,5x9,5cm. 

PERGOLA 400x500cm. Support columns 12x12cm. Central beams 8x16cm. Beams (parallel beams) 6x12cm. Supports (only in autonomous pergola) 4,5x9,5cm

PERGOLA 400x600cm. Support columns 12X12cm. Central beams 8x16cm. Beams (parallel beams) 6x12cm. Supports (only in autonomous pergola) 4,5x9,5cm.





Included in the price:

·         Boards 12cm wide are included.

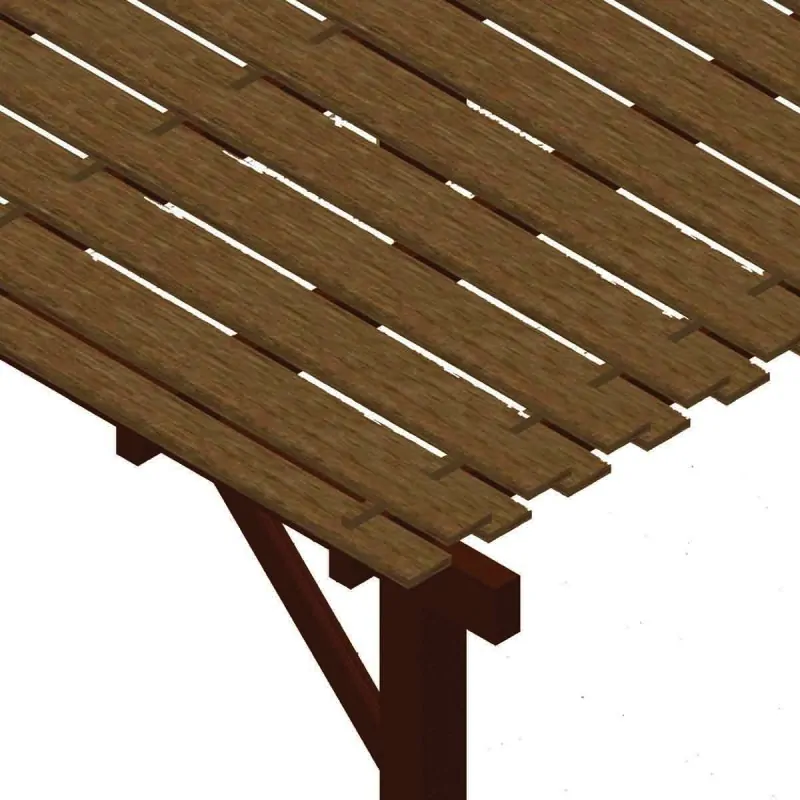

·         The cost of timber materials for the assembly of the illustrated pergola.

·         Metal components ground Bases ‘Π,

·         Torx screws, bolts, dowels (depending on the cross section of the column).

·         For the pergola that is supported on a wall, the joist hangers.

·         Awning in strips, excellent quality, 100% waterproof and self-washable. Roll dimensions 10m. or 20m., depending on the size of the pergola.



The price does not include:

     Painting of the timber (if you desire the pergola painted, please contact us first).

•     Assembly plan.

•     No special cuts, modifications, or personalized mods are included (pre-drilling, standardization, trim, timber clasp, timber routing, timber angles, etc.).

·         The assembly of pergola in customer’s place. 


WHY TO CHOOSE THE SHOWOOD PERGOLA

·         The timber used for the construction of the wooden pergola is PRESSURE TREATED planed pine (pressure treated in a vacuum under pressure), of Finnish origin.

·         The timber has all the necessary certificates (ecological treatment, production, origin) as it is imported from the largest and most modern European factories.



·         The metal elements (bases) are hot-dip galvanized, the screws (bolts, dowels, washers) are of Italian origin and excellent quality.



*The above dimensions are indicative.





At SHOWOOD you will find all sections of pressure treated timber, metal parts and shading materials to create your own unique pergola.

info INSTALLATION / ASSEMBLY OF THE PRODUCT IS NOT INCLUDED? The prices of the products do not include the assembly (in those products that need assembly) or installation, at the customer's place.

In case you want the help of a technician, please contact us at 210 2478811.
info SOLD UNPAINTED? SHOWOOD products (pressure treated or not) are available in the shade of the pine, without being further painted in different colors.
All the products that are pressure treated, have a transparent green color and are marked with the TREATED PINE icon. The products that are not pressure treated are in the shade of wood (pine).
In both cases, either by contacting or by selecting it through the product (where available), we can deliver your products colored (gray, brown, white ...)
DIMENSIONS:
300 x 300
300 x 400
300 x 500
400 x 400
400 x 500
400 x 600
Manufacturer
