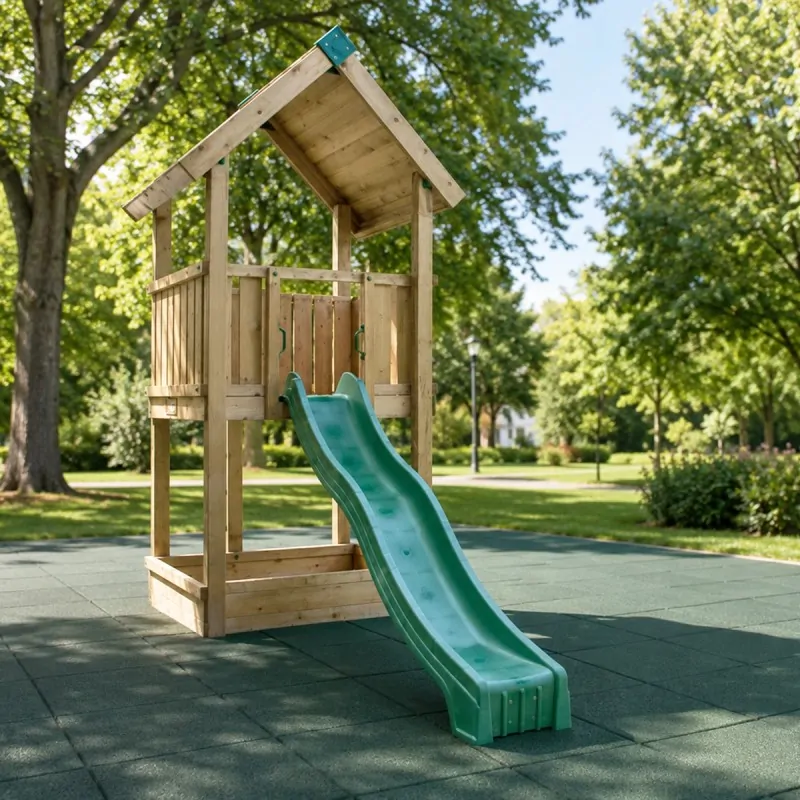

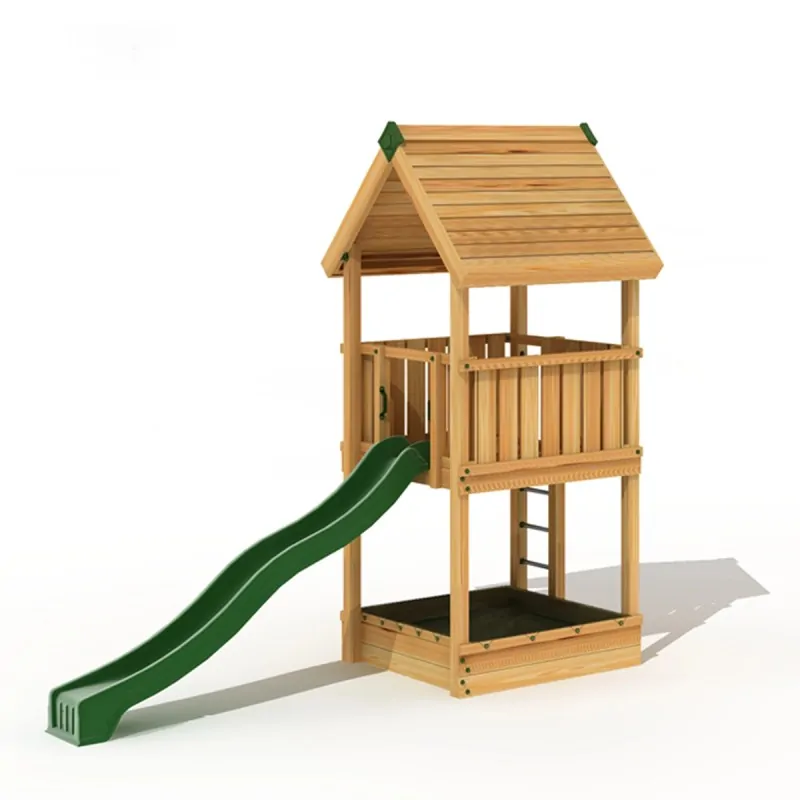

Professional Wooden Playground Tower – Project 2

The Project 2 Professional Wooden Playground Tower has been designed for use in commercial and public spaces, offering children a safe, engaging, and creative play environment.

The structure is suitable for children aged 3 to 12 years and can accommodate up to 4 users at the same time.

It is made from high-quality pressure-treated Finnish timber, pre-cut and prepared to the required assembly dimensions. The timber is supplied with the relevant quality and treatment certificates.

The Package Includes

• Kit with all required assembly components

• Detailed assembly and installation instructions

• One green slide, 300 cm long

• Pressure-treated Finnish timber, pre-cut to the required assembly dimensions

• Timber quality and treatment certificates

Technical Specifications

Maximum number of users: 4 children
Recommended age: 3–12 years
Slide: 1 green slide, 300 cm long
Required installation area: 35 m²
Safe installation zone: 7.4 × 4.6 m
Slide platform height: 1.5 m
Overall tower height: 4 m
Recommended concrete quantity: 90 litres / 180 kg
Estimated assembly time: 6 hours with 2 people

Certifications for Professional and Public Use

The equipment is suitable for installation in professional and public spaces and complies with the following standards:

• DIN EN 1176-1/12.17

• DIN EN 1176-2/12.17

• DIN EN 1176-3/12.17

• AfPS GS 2014:01

The playground equipment has been carefully designed with safety as a priority and has been tested in accordance with the applicable European standards for playground equipment.

Installation Requirements

The equipment must be installed above a suitable impact-absorbing surface, in accordance with European Standard EN 1176.

Depending on the critical fall height, suitable surfacing materials may include:

• Rubber safety flooring

• Sand

• Gravel

• Natural or synthetic grass of suitable specifications

For a fall height of up to 1.5 m, the type and required thickness of the safety surface must be selected in accordance with the applicable standard and the specific conditions of the installation area.

Important Information

The playground must be assembled, installed, inspected, and maintained strictly in accordance with the instructions and technical documentation included in the packaging.

For professional or public use, installation by a qualified team is recommended, together with the implementation of the required regular inspection and maintenance schedule.
