Seesaw Ground Anchor Connector with Metal Base
Seesaw Ground Anchor Connector with Metal Base
Seesaw Ground Anchor Connector with Metal Base
Seesaw Ground Anchor Connector with Metal Base
Seesaw Ground Anchor Connector with Metal Base
Seesaw Ground Anchor Connector with Metal Base

Seesaw Ground Anchor Connector with Metal Base

26120
€740.00
Available
Metal seesaw connector base for ground installation, suitable for creating a seesaw structure using only one wooden beam. Compatible with round timber Ø140–180mm or square timber 90–160mm and certified according to EN 1176 standards for professional use.
The wanted quantity is not available.

info INSTALLATION / ASSEMBLY OF THE PRODUCT IS NOT INCLUDED? The prices of the products do not include the assembly (in those products that need assembly) or installation, at the customer's place.

In case you want the help of a technician, please contact us at 210 2478811.

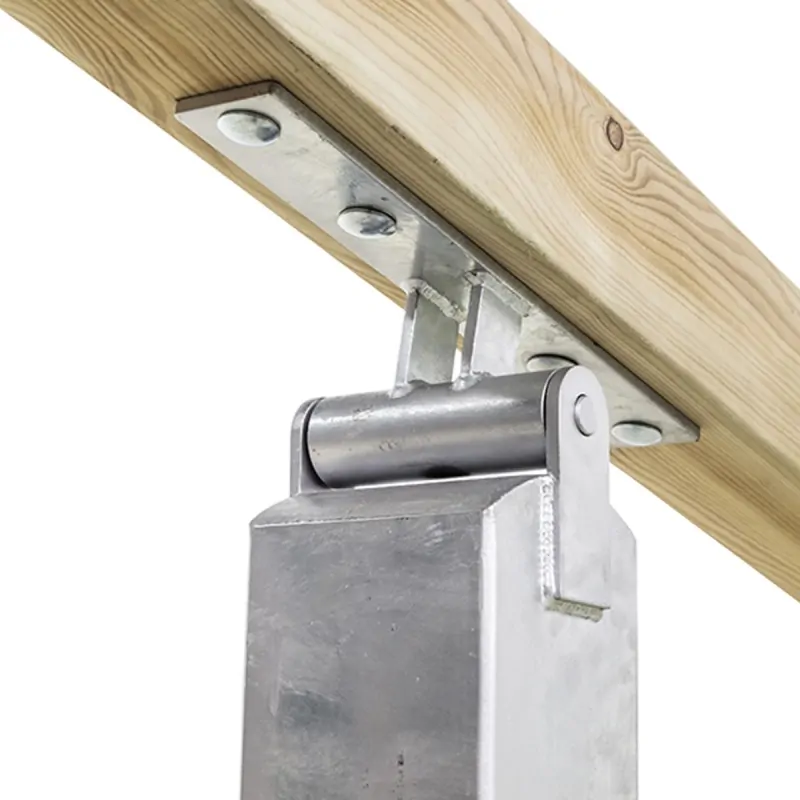

The seesaw ground anchor connector is designed to build a strong, stable seesaw with a single wooden beam.

The vertical metal tube must be anchored in concrete to ensure proper stability and safe installation.

It is suitable for constructions using:

  • round timber from Ø140 to Ø180mm
  • square timber from 90 to 160mm

The connector features four fixing points for securely attaching the wooden beam. The square mounting holes measure 13 x 13mm and are intended for use with M12 bolts.

Mounting hardware is not included.

This product is suitable for professional playground constructions and is certified according to EN 1176-01, EN 1176-06, and EN 1176-07 standards.

Technical Specifications

Feature Description
Product type Seesaw connector/metal base
Installation Ground installation with concrete anchoring
Suitable for Seesaw construction with one wooden beam
Compatible round timber Ø140–180mm
Compatible square timber 90–160mm
Fixing points 4
Mounting holes 13 x 13mm
Suitable bolts M12
Mounting hardware Not included
Dimensions 15 x 15 x 107.5cm
Certification EN 1176-01 / EN 1176-06 / EN 1176-07
Use Professional use

Important Installation Note

The vertical metal tube must be anchored in concrete. Installation should be carried out by a qualified professional in accordance with playground safety requirements.

info INSTALLATION / ASSEMBLY OF THE PRODUCT IS NOT INCLUDED? The prices of the products do not include the assembly (in those products that need assembly) or installation, at the customer's place.

In case you want the help of a technician, please contact us at 210 2478811.
VOLUME:
0.048000
WEIGHT:
18.500000
Manufacturer
