Swing corner Unioversal 90°

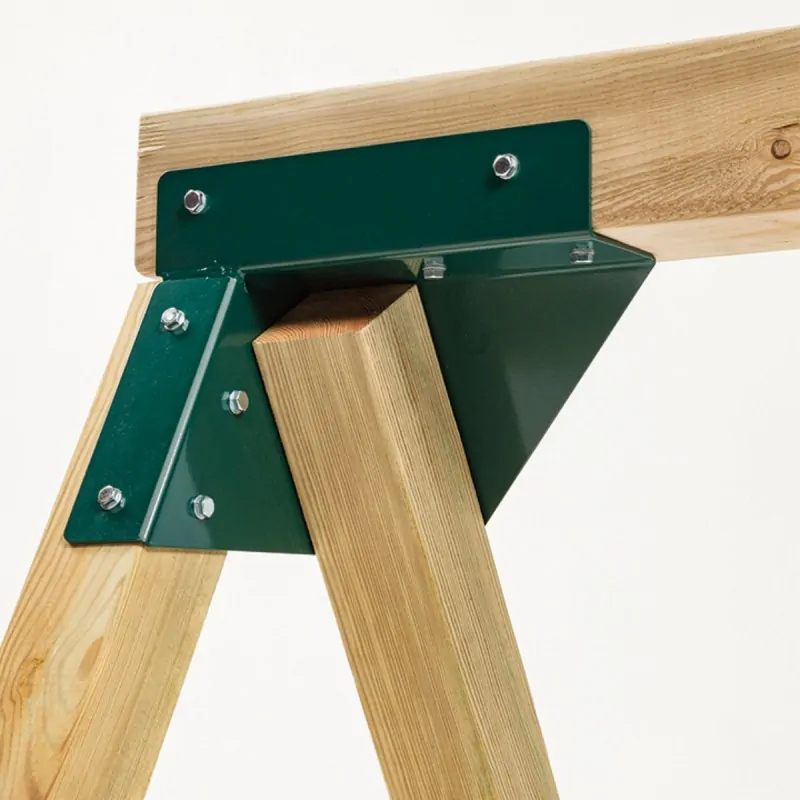

The swing corner ‘universal’ can be mounted with variable wood sections.
For the legs, square wood from 70x70mm up until 100x100mm can be used.
For the top beam, square wood from 90x90 mm up until 125x125 mm can be used.
This makes the ‘universal’ swing corner very flexible in use.
Because of the unique design, it is not prone to tolerance differences in the wood sections. The swing corner is also highly stackable making it compact for transportation.

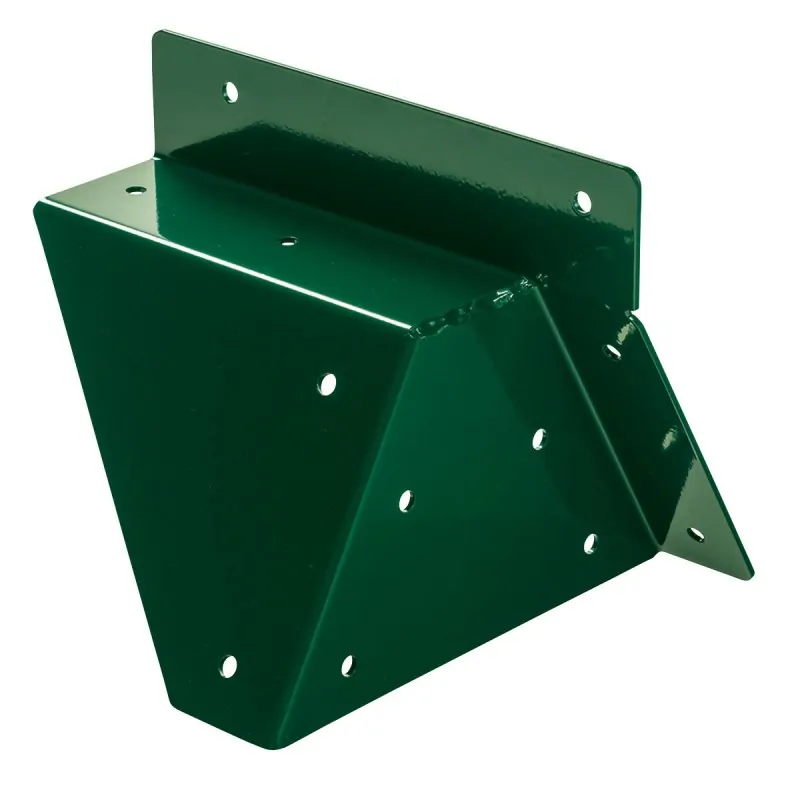

The thickness of the metal plate is about 3,5 mm. The boreholes for fixation are Ø10 mm.
Dimensions: 337 x 304 x 263mm
All KBT products are being tested and being approved according to the latest European directives and regulations (TUV NORD cert).
