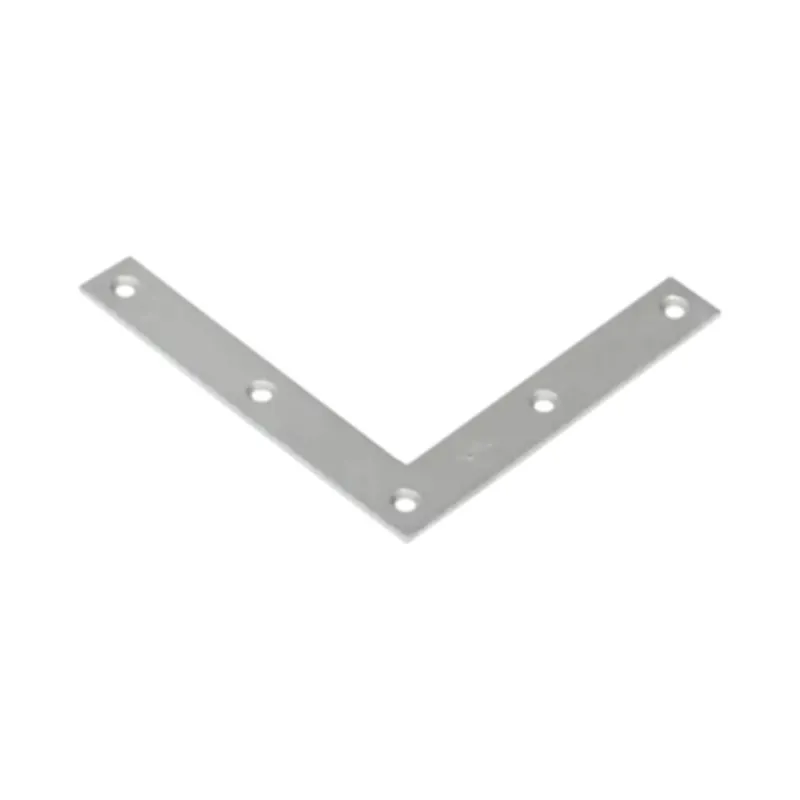

Wood Connector Angle Bracket 100×100×15 mm

The 100×100 mm angle bracket is a high-performance structural connector designed for demanding timber constructions. Manufactured in accordance with EN 14545:2008 and supported by Declaration of Performance DOP-448771-2024, it guarantees reliability, load-bearing strength, and long-term durability.

It is ideal for pergolas, roofs, wooden frames, fences, shelters, outdoor structures, and any application where two timber elements must be firmly joined at a 90° angle.

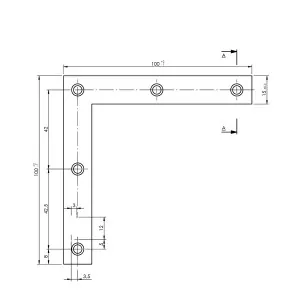

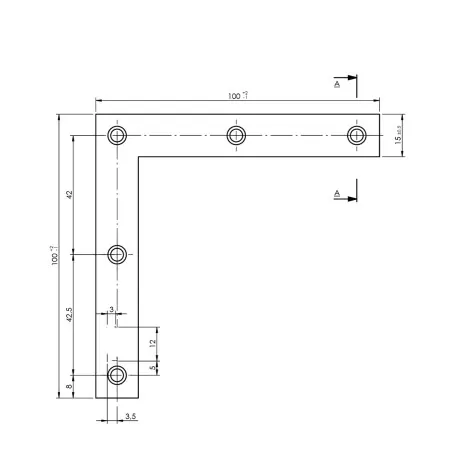

Technical Specifications

• Dimensions: 100 × 100 mm

• Strip width: 15 mm

• Thickness: 2 mm

• Holes: Round, suitable for Ø4 mm nails/screws

• Material: High-strength steel

• Yield strength (Re): 220 MPa

• Minimum elongation: 20%

• Corrosion protection: Fe/Zn 12c, suitable for Service Classes 1 & 2 (EN 1995-1-1 – Eurocode 5)

Applications

Suitable for:

• Joining two timber elements on one plane

• Reinforcing joints

• Anchoring wooden structures

• Internal and protected external timber constructions

Ideal for carpenters, builders, and DIY users.

Installation

Recommended fasteners:

• Ring shank nails Ø4 mm, length ≥ 50 mm
