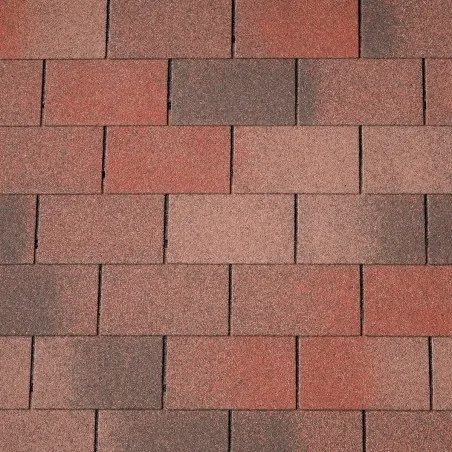

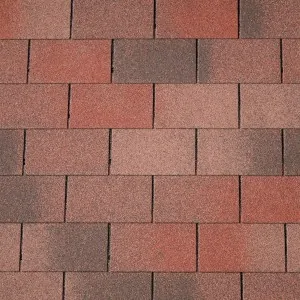

Red Rectangular Asphalt Shingle 3m²

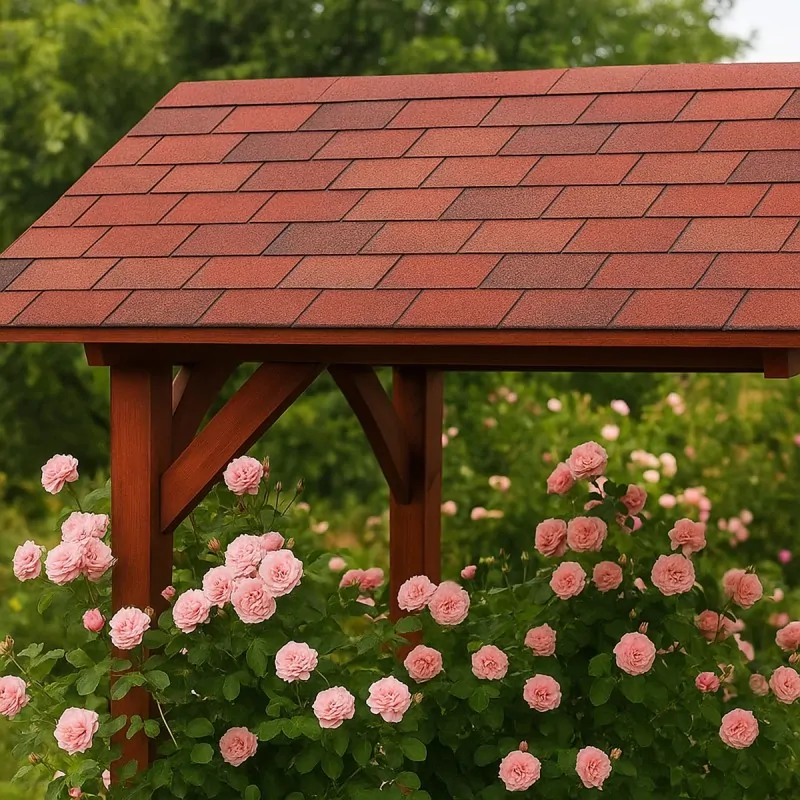

The rectangular asphalt shingles offer a durable, cost-effective, and high-quality roofing solution suitable for a wide range of structures, including pergolas, garden sheds, outbuildings, and small residential roofs. With a weight of 9.63 kg/m² and a packaging area of 3 m² per bundle (21 sheets), they provide excellent weather resistance, long service life, and reliable waterproofing.

Their lightweight design and straightforward installation make them ideal for both DIY users and professional installers, while ensuring a strong, long-lasting finish on any wooden roof deck.

Installation Guidelines

For optimal performance, the shingles must be installed according to manufacturer recommendations:

• Install only with roofing nails on a flat, stable wooden surface (OSB or plywood).

• Minimum required roof slope: 12° (22%).

• The first main row overlaps the starter strip and extends slightly beyond the eaves.

• The second row must be installed half a tab offset, ensuring correct alignment with the notches of the row below.

• Ridge caps are created by cutting rectangular shingles and installing them tab by tab along the ridge.

• Material consumption: approx. 100 g of asphalt adhesive per m² (where needed in windy or cold conditions) and 1 kg of galvanized roofing nails per 18–20 m².

Technical Specifications

• Type: Rectangular asphalt shingle

• Weight: 9.63 kg/m²

• Coverage per bundle: 3 m²

• Pieces per bundle: 21 sheets

• Installation: Nail-on

• Substrate: Solid wooden deck

• Adhesive consumption: 100 g/m²

• Nail consumption: 1 kg / 18–20 m²

• Warranty: 15 years, when installed according to manufacturer guidelines
